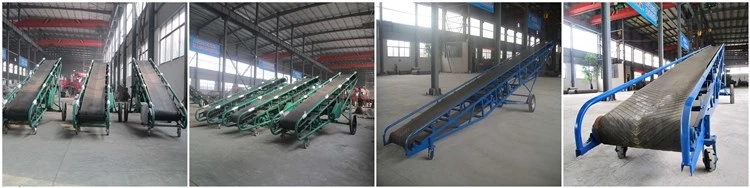

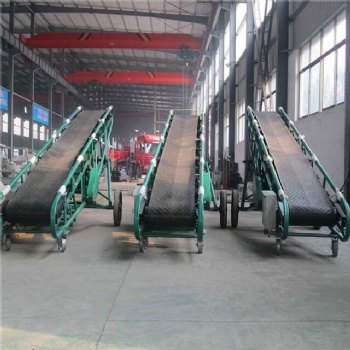

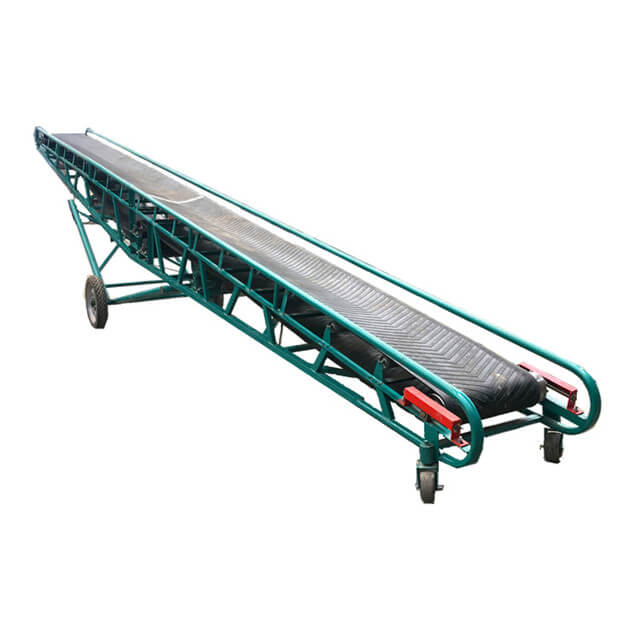

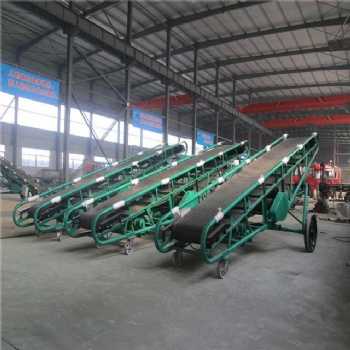

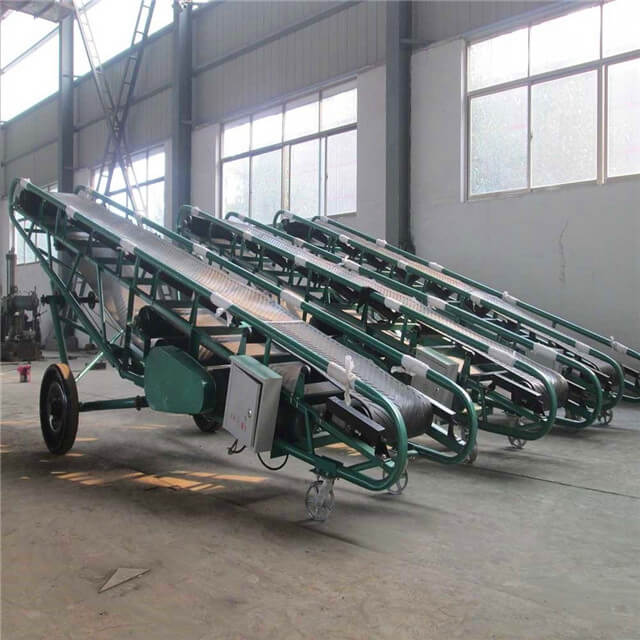

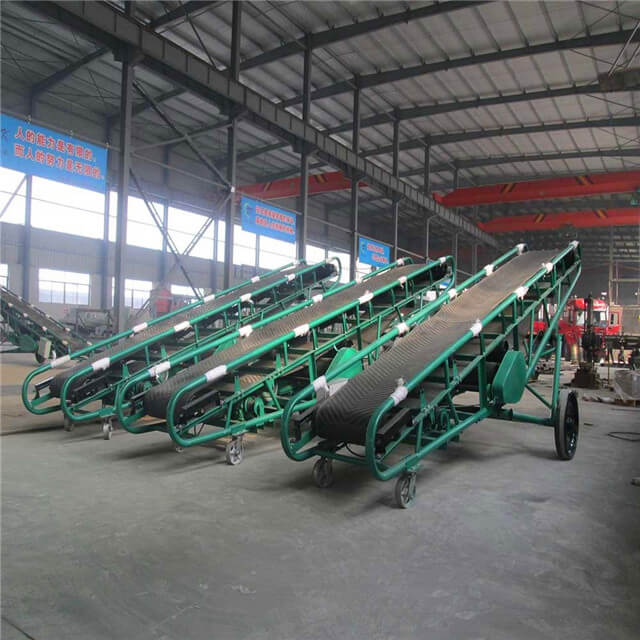

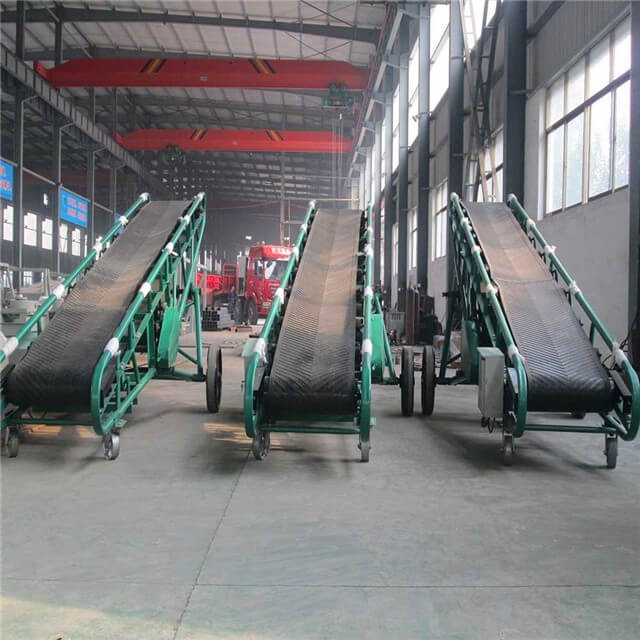

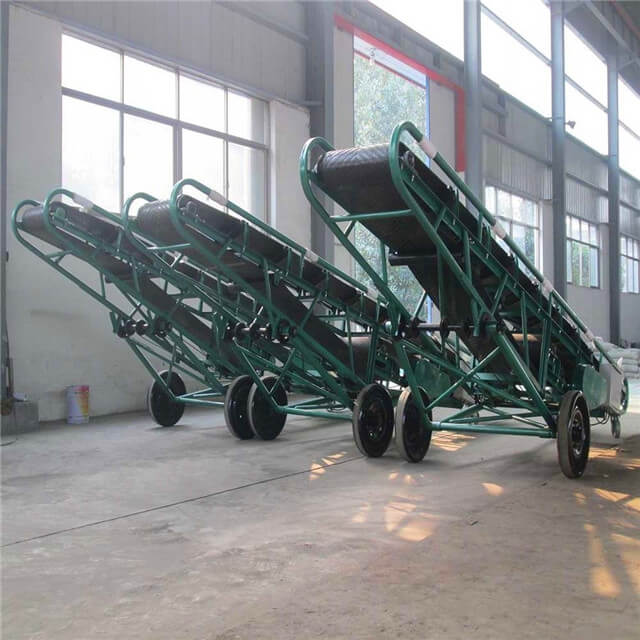

Mobile Belt Conveyor

I. Working Principle of belt conveyor

It is mainly composed of frame, conveyor belt, belt roller, tensioning device and transmission device.The fuselage is made of high quality steel plate, and the frame is formed by the difference between the front and rear legs. The plane is inclined at a certain Angle.The frame is equipped with belt roller, idler, etc., which is used to drive and support the belt.There are deceleration motor drive and electric drum drive two ways.

Belt conveyor is widely used in grain, metallurgy, coal, hydropower, mining and other departments used to transport bulk materials or pieces of transport.It is widely used in conveying stone material production line in equipment production.

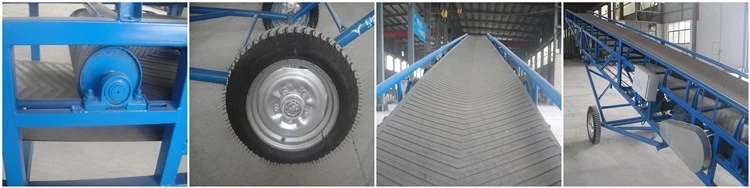

II. Structure

Trough belt machine, flat belt machine, climbing belt machine, turning belt machine and other forms, conveyor belt can also add the lifting baffle, skirt edge and other accessories, to meet various technological requirements.Both sides of the conveyor with a working table, add lamp stand, can be used as electronic instrumentation assembly, food packaging assembly line.

III. Belt conveyor features:

1. Large conveying capacity, simple structure and convenient maintenance.

2, parts standardization, according to the requirements of the transport process, can be a single set of transport, also can be composed of multiple sets.

3. Stable delivery and low noise.

4. Low energy consumption and low use cost.

5. Component standards.

IV Technical parameters
