Screw conveyor commonly known as the auger conveyor, is a mineral, feed, grain and oil, construction in the use of a conveying equipment widely, from the Angle of the conveying material displacement direction, screw conveyor is divided into horizontal screw conveyor and two types of vertical screw conveyor, mainly used for the various powder, granulated and small lump of loose materials such as horizontal and vertical ascent.
The screw conveyor is all made of steel, there is a conveying pipe inside, blades into a spiral welded on the conveying pipe.It consists of a driving device, a closed tank and a screw that rotates the coal in the tank.The screw conveyor is used to transport the powder or solid particles with high temperature and other chemical and building materials products.
Characteristic

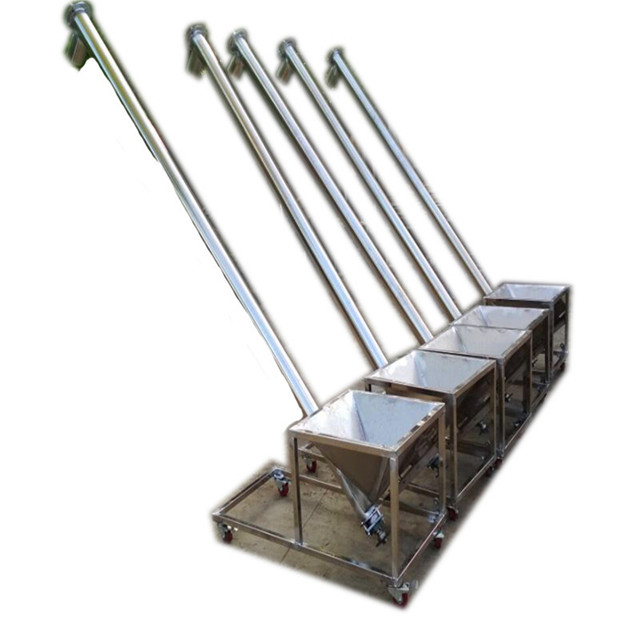

1. Dust free operation: The flexible screw conveyor is totally sealed during operation and no air is used as conveying medium
2. Easy to clean: The conveying system can be easily dismantled for cleaning
3. Small foot print: The conveying soft tube takes up little or no floor space within your facility
4. Easy to install: The conveying system is connected by quick-open clamps which makes the installation very easy
5. GMP standatrd: The system is made by stainless steel and mirror polished. No dead corners for cleaning.
6. Low noise and power consumption
Technical Parameter
Model | Diameter (mm) | The distance of blades(mm) | Speed (rpm) | Capacity (t/m³) | Speed (rpm) | Capacity (t/m³) | Speed (rpm) | Capacity (t/m³) | Speed (rpm) | Capacity (t/m³) |
D | S | n | φ=0.33 | n | φ=0.33 | n | φ=0.33 | n | φ=0.33 | |
LS100 | 100 | 100 | 140 | 2.2 | 112 | 1.7 | 90 | 1.4 | 71 | 1.1 |
LS125 | 125 | 125 | 125 | 3.8 | 100 | 3.0 | 80 | 2.4 | 63 | 1.9 |
LS160 | 160 | 160 | 112 | 7.1 | 90 | 5.7 | 71 | 4.5 | 56 | 3.6 |
LS200 | 200 | 200 | 100 | 12.4 | 80 | 9.9 | 63 | 7.8 | 50 | 6.2 |
LS250 | 250 | 250 | 90 | 21.8 | 71 | 17.2 | 56 | 13.6 | 45 | 10.9 |
LS315 | 315 | 315 | 80 | 38.8 | 63 | 30.5 | 50 | 24.2 | 40 | 13.4 |
LS400 | 400 | 355 | 71 | 62.5 | 56 | 49.3 | 45 | 38.6 | 36 | 31.7 |
LS500 | 500 | 400 | 63 | 97.7 | 50 | 77.6 | 40 | 62.0 | 32 | 49.6 |
LS630 | 630 | 450 | 50 | 138.5 | 40 | 110.8 | 32 | 88.6 | 25 | 69.3 |
LS800 | 800 | 500 | 40 | 198.5 | 32 | 158.8 | 25 | 124.1 | 20 | 99.3 |
Screw conveyor is widely used in various industries, such as building materials, chemical industry, electric power, metallurgy, coal coal, grain and other industries, suitable for horizontal or inclined transport of powder, granular and small materials, such as coal, ash, slag, cement, grain, material temperature is less than 200℃.The screw machine is not suitable for conveying perishable, viscous, easily caked materials.In the concrete mixing plant, the role of the screw conveyor has been greatly reflected.
