QH series wheat suction air conveyor is an advanced material handling machine.The suction air conveyor is compact and flexible, and the assembly is quick and convenient. After simple combination, it can be used for separate pressure feeding, separate suction feeding, or mixed use of suction and pressure feeding.

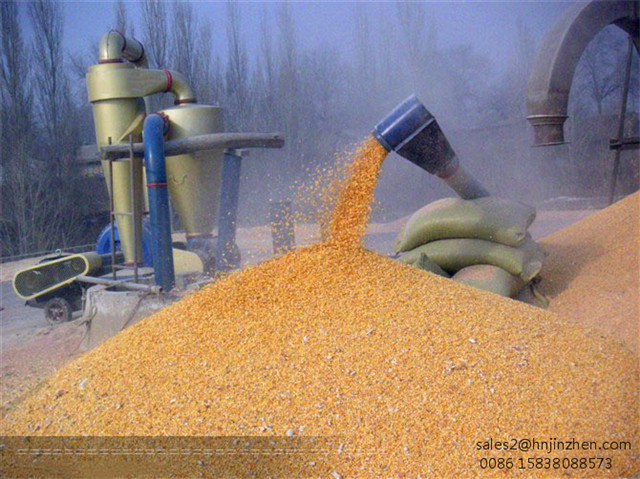

The grain pneumatic conveyor can be horizontal, inclined and vertical transmission, such as rice, wheat, rice, corn, corn, barley malt, plastic and resin and other granular materials, applicable to the grain, farm, station, wharf, grain and oil processing and brewing industry in storage or in the process of production of bulk, bulk transport, discharge, turn over the storehouse, pour pile, the modernization of warehouse, warehouse etc.The machine has a rough cleaning and dewatering effect on grain when transporting grain.
Technical Parameter

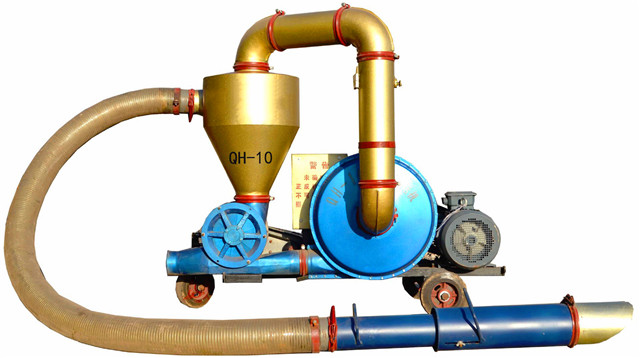

Model | QH—10 |
maximum convey （t/h） | 10 |
blower power （KW） | 11 |
air-lock power（KW） | 0.75 |
total（KW） | 11.75 |
main motor | Y160M1-2 |
air-lock model | Y90S-6 |
fan speed （rpm） | 4100 |
air-lock speed（rpm） | 60 |
Pressure (water column/mm) | 1500 |
air flow（m3/h） | 1000 |
airflow velocity（m/s） | 24 |
feed tube diameter（mm） | 150 |
feeding diameter（mm） | 124 |
Max.horizontal distance（m） | 50 |
Max. suck distance（m） | 10 |
Max. lift（m） | 8 |
weight（kg） | 460 |
dimension（L*W*Hmm） | 1780*1058*1550 |
