Grass Hay Cutter

The chaff cutter machine is mainly used to cut various dry and fresh materials, such as crop straw, hay, forage, silage, grass, stalk, bamboo, etc. And the processed materials can be used for breeding various animals, such as cattle, sheep, deer, horse, or other livestock.which suitable for breeding cattle and sheep deer horse etc.

Working Principle of Hay Wet Grass Crusher

The motor is used as the supporting power. The power is transmitted to the main shaft, and the gears on the other end of the main shaft pass through the gear box, universal joint, etc. to transmit the adjusted power to the groove pressing roller. When the material to be processed enters between the upper and lower groove pressing rollers, it is clamped by the pressing groove roller. And it is sent into the guillotine cutting mechanism at a certain speed, and after being chopped by the adjusted rotating cutter, it is thrown out of the machine through the grass outlet.

Structure of Chaff Cutter

The main structure of the chaff cutter is composed of automatic feeding mechanism, power transmission mechanism, cutting, kneading and throwing mechanism, walking mechanism and safety protection device.

1. Automatic feeding mechanism: feeding chain, sprocket, feeding guard plate, feeding roller and support;

2. Power transmission mechanism: spindle and spindle wheel, motor pulley, transmission sprocket, chain, gear, transmission shaft, universal shaft and connecting pin of connecting sleeve, etc.

3. Hydrate cutting, kneading and throwing mechanism: fixed knife bed, fixed blade, cutter head, moving blade, throwing material elbow, etc.

4. Walking mechanism: traction rod, steering wheel, etc.

Technical Parameter

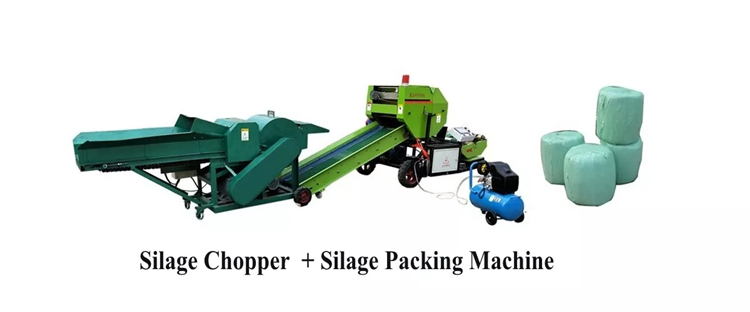

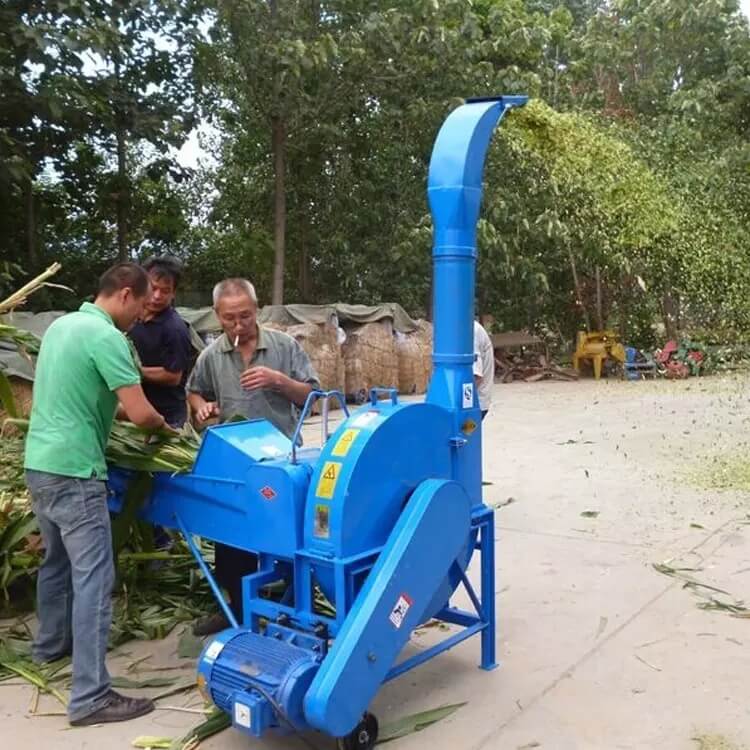

Picture of grass Hay Cutter
